Industrial buildings
Separate branch circuits around lighting and socket loads in production areas.
Final Distribution · Lighting & Socket Circuits

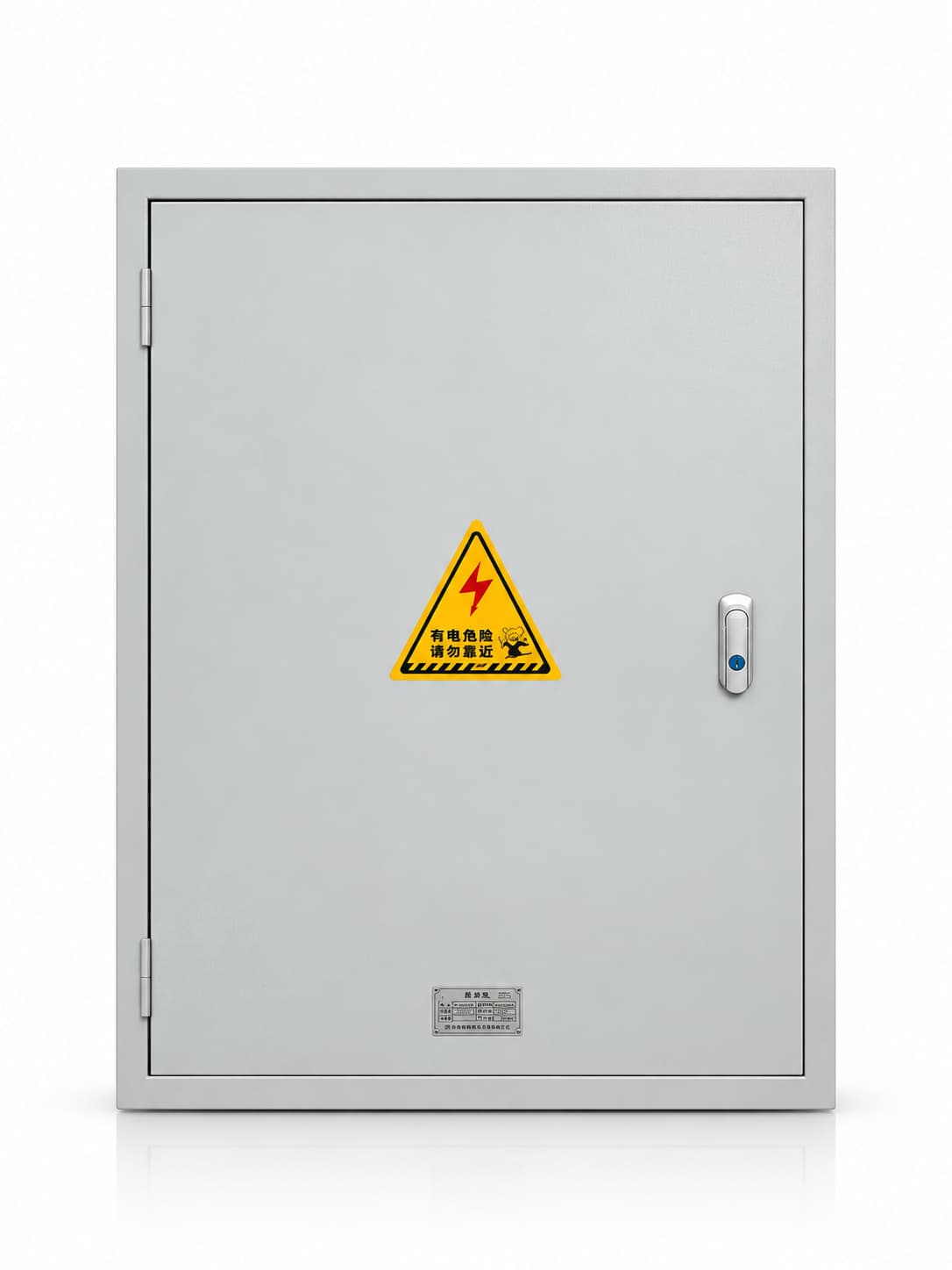

Lighting & Socket Distribution Boxes
For lighting supply, socket supply and branch-circuit protection in low-voltage systems. Lighting, socket and spare circuits are defined separately, with metering and control functions selected to the electrical scheme.
Available as an empty enclosure or assembled equipment. Enclosure, doors, mounting plate, locks and accessories follow the agreed list. Empty supply does not include sockets, circuit breakers or internal wiring by default; assembled supply follows the confirmed drawings and configuration list.
Typical Lighting & Socket Applications
These uses help assess suitability; they are not completed project references.
Commercial buildings
Final distribution arranged by usage area, simultaneous demand and protection scheme.
Equipment maintenance areas
Socket formats selected to maintenance equipment voltage, plug interfaces and loads.
Lighting and socket supply areas
Plan lighting, socket and spare circuits separately; confirm any metering or control functions in the scheme.
Parameters & Configuration
The following options are listed in the manual. Socket ratings and box incoming current are confirmed separately. Installation, protection, openings and device configuration require a combined project assessment; not every combination is implied to be suitable.
| Item | Listed options / configuration | To confirm for the project |
|---|---|---|
| Operating voltage | AC 220 / 230 / 380 / 400 V | Other voltages are project-specific. |
| Operating frequency | 50 / 60 Hz | Other frequencies are project-specific. |
| Distribution arrangement | Single-phase / three-phase | Wire arrangement and earthing system follow the project scheme. |
| Installation | Wall-mounted / recessed | Other methods depend on enclosure construction and project requirements. |
| Rated incoming current | Project-specific | Determined by load capacity, simultaneous use and protection scheme; it is not the rating of an individual socket. |
| Circuit count | Lighting / socket / spare circuits | Specify the number of each circuit type separately for the project. |
| Socket configuration | General-purpose / industrial sockets | Format, rated voltage, pole count and quantity depend on the destination and loads. |
| Industrial socket rated current | 16 / 32 / 63 A | These are industrial socket ratings, not the box rated incoming current. Other ratings are project-specific. |
| Degree of protection | IP40 / IP43 / IP54 | Other ratings require project-specific assessment and confirmation. |
| Enclosure steel thickness | 1.0 / 1.2 / 1.5 mm | Other thicknesses are project-specific. Door and mounting-plate thicknesses are specified separately. |
| Enclosure material | Cold-rolled steel / galvanized steel / stainless steel | Selected for the project. |
| Surface treatment | Powder coating for steel enclosures | Stainless-steel finish and colour are project-specific. |
| Protection & auxiliary configuration | Circuit breakers, residual-current protection, surge protection, metering and control devices | Selected to the electrical scheme; not included by default in empty-enclosure supply. |
| Overall dimensions | Width × height × depth, in mm | Defined by device layout, wiring and available installation space. |
| Cable entry / exit | Top / bottom / side | Opening positions and interfaces follow the confirmed drawings. |
Socket formats, protective devices and circuit arrangement are confirmed together; socket quantity does not directly define circuit count.
Final parameters, configuration and scope of supply are subject to the confirmed drawings and order agreement.
Choose Empty or Assembled Supply
Empty enclosure
Mechanical enclosure supply for subsequent assembly by the customer.
- Enclosure, doors, mounting plate, locks and other mechanical accessories as listed.
- Mounting construction, openings and interfaces follow the confirmed drawings.
- Empty supply does not include sockets, circuit breakers, other electrical devices or internal wiring by default.

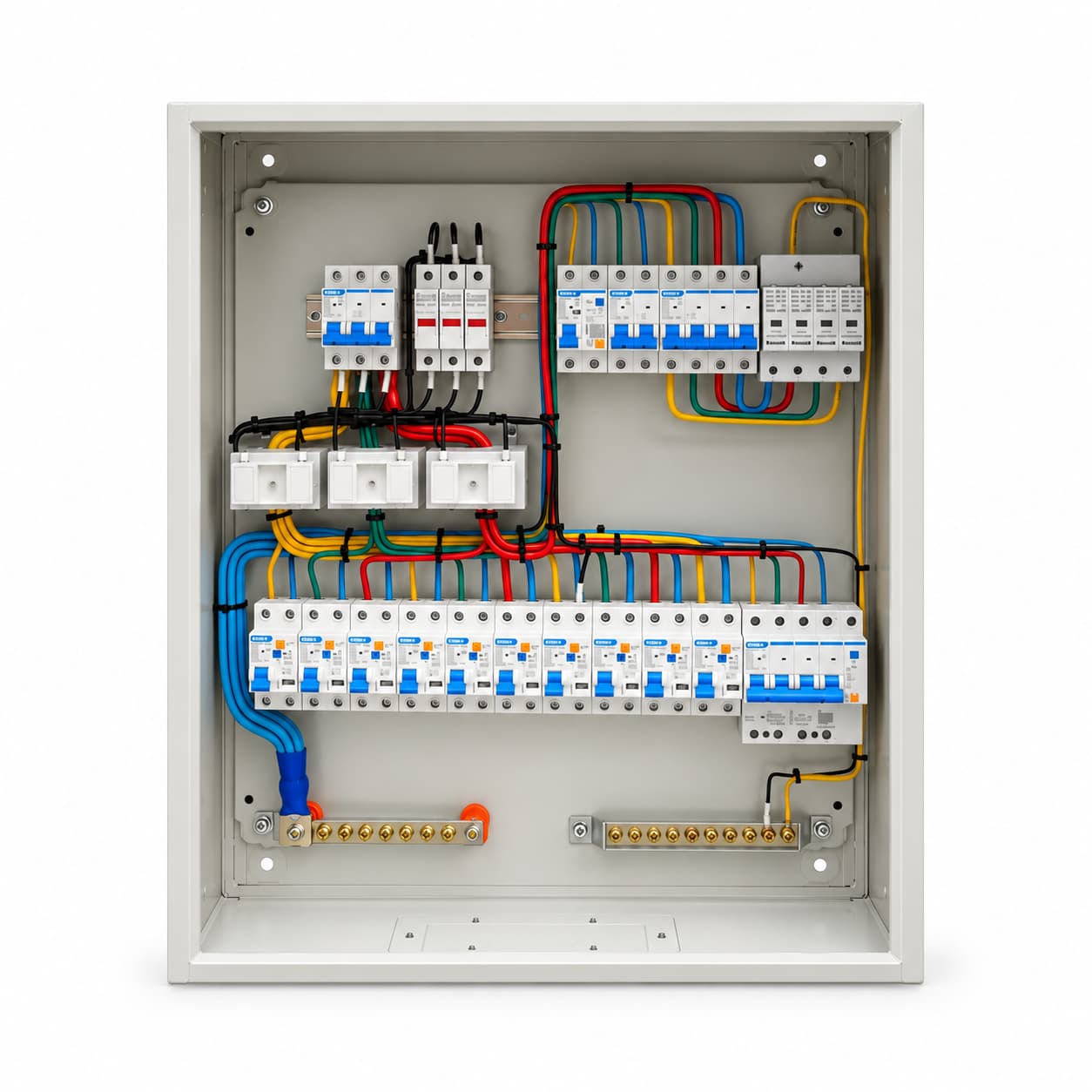

Assembled equipment
Enclosure with the agreed components and internal wiring.
- Components, sockets, terminals and internal wiring follow the confirmed drawings and configuration list.
- Lighting, socket and spare circuits and protective devices follow the electrical scheme.
- Metering, control functions, applicable checks and delivery documents follow the supplied configuration and order agreement.
Interfaces & Additional Scope
External cables, site installation and commissioning require a separate agreement. Mechanical accessories, operating interfaces and partial-supply inclusions must be identified in the drawings and lists.
Define Circuits, Sockets & Installation
Start with loads and destination requirements, specify lighting, socket and spare circuits separately, then confirm enclosure and assembled configuration.
You provide
- Quantity, empty or assembled supply, operating voltage, frequency and incoming current.
- Lighting, socket and spare circuit counts, load capacity and simultaneous use.
- Socket destination, format, voltage, pole count, ratings and quantity.
- Installation method, dimensions, IP rating, brand preferences, openings and electrical drawings.
GoodQi confirms
- Enclosure material, thickness by part, surface finish and mechanical accessories.
- Socket layout, circuit allocation, protective devices and metering / control configuration.
- Incoming arrangement, internal wiring, dimensions, mounting and cable interfaces.
- Confirmed drawings, supply list, applicable checks and delivery documents.
Use Additional Requirements for circuit allocation, socket formats and ratings, and installation conditions. Attach electrical and installation drawings in your email app after preparing the enquiry draft.
Request a Distribution Box QuoteQuality Checks & Delivery Documents
Incoming, assembly and outgoing checks follow the confirmed product configuration and order scope.
Checks for the supplied equipment
- Empty enclosures
- Dimensions, structure, surface finish, assembly and supply completeness against the order.
- Assembled equipment
- Component and wiring checks, insulation, earth continuity, energization and functional checks as applicable to the configuration.
Documents agreed for the project
- Outline and arrangement drawings
- Single-line diagram and component list
- Wiring and interface drawings, where applicable
- Routine inspection records for the agreed checks
Required documents, submission stages and any witness or special inspection requirements are agreed before the order.
Lighting & Socket Distribution FAQ
Do 16 / 32 / 63 A specify the box incoming current?
No. These are the industrial socket ratings listed in the manual. Box incoming current is determined separately from load capacity, simultaneous use and the protection scheme.
How are lighting, socket and spare circuits configured?
Confirm the count and protection scheme for each circuit type separately. Socket format, voltage, poles and quantity depend on the destination and loads; socket quantity alone does not determine circuit count.
Does an empty enclosure include sockets and wiring?
Sockets, circuit breakers and internal wiring are not included by default. Mechanical accessories follow the agreed list; assembled components, sockets, terminals and wiring follow the confirmed drawings and configuration list.
How do I enquire about this product?
Use the quote button to open the form with Lighting & Socket Distribution Boxes preselected. Enter circuit, socket and installation needs, prepare the draft, then attach drawings and review in your email app before sending.
Discuss Your Lighting & Socket Distribution Requirements
Final parameters, configuration and scope of supply are subject to the confirmed drawings and order agreement.
